>>｣ｭPOWER DIVIDER｣ｭ8-Way Power Dividers

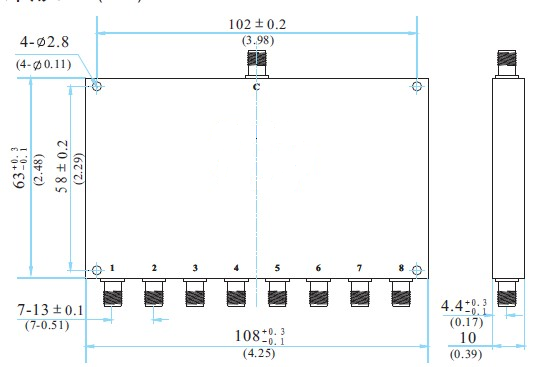

Name:8-Way Power Dividers (PD8-1-2A)

Product Info｣ｺ

Model Number	PD8-1-2A
FREQUENCY RANGE	1.0-2.0 GHz
AMPLITUDE IMBALANCE	｡ﾀ 0.4 dB
PHASE IMBALANCE	｡ﾀ 5.0 Degrees
ISOLATION	> 20 dB
MAXIMUM VSWR	1.35
INSERTION LOSS	< 0.8 dB
POWER RATING	Average 20 W Peak 3 KW
STANDARD CONNECTORS	SMA Female
OPERATING TEMPERATURE	-54º to +85º C

Parameter｣ｺ

Units with a special specification can be supplied.
