>>－HYBRID COUPLERS－3 dB 180 Degree Hybrid Couplers

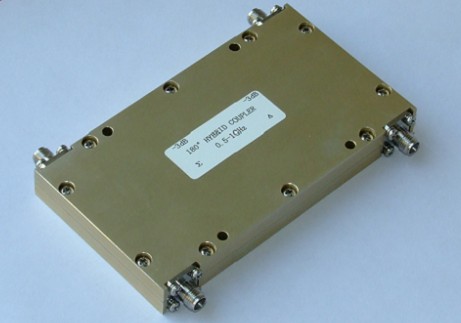

Name:3 dB 180 Degree Hybrid Couplers（H180051A）

Product Info：
Model Number
H180051A
FREQUENCY RANGE
0.5-1.0 GHz
COUPLING
3 dB
AMPLITUDE IMBALANCE
± 0.4 dB
PHASE IMBALANCE
± 10 Degrees
ISOLATION
> 22 dB
MAXIMUM VSWR

INSERTION LOSS
< 0.4dB
POWER RATING
Average 20 W
Peak 3 KW
STANDARD CONNECTORS
SMA Female
WEIGHT (ounces)

OPERATING TEMPERATURE
-54º to +85º C
Parameter： Units with a special specification can be supplied.
